Conveyor technology for tunnel construction

for example:
Koralm Tunnel, Austria
Belchen Tunnel, Switzerland
Follo Line Tunnels Oslo, Norway
Brenner Base Tunnel, Italy
Woodsmith Mine Tunnel, Great Britain
Metro Line 14, Grand Paris Express, France
Scarborough Metro Toronto, Canada
etc.

Our deliveries:

Conveyor belt bridges in various lengths and designs
Support elements for conveyor belt bridges
Steel components for substructures
Steel components for substructure drive station
Steel components for platforms
Trimelle
Impact tables for conveyor belts
etc.

MAIN DATA
PROJECT No.:	BING Kaiser - 201832
OWNER:	Tankschifffahrt Nortorf Verwaltungs GmbH
NAME:	HOLSTEIN
REGISTRATION:	HAMBURG
FLAG:	GERMANY
SHIP TYPE:	TANKSHIP TYP C / DOUBLE SCREW
Navigation Areas:	Inland Navigation
Dimensions
Length Over All (Loa)	86.00 m
Breadth Over All (Boa)	9.60 m
Depth (D)	4.60 m
Draught (T)	2.80 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	1,885.00 m³
Cargo Tank / Center Tank	5.00 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	I 5 IN (0,6) Z
Service Notations:	TANKER / DOUBLE HULL / DP=57,5kPa / TP=65kPa / 2R ADN TYPE C / MAXIMUM CARGO DENSITY 1,0t/m³
Machinery:	● MC
Maximum Bending Moments (Navigation Condition)
Hogging	25291 kNm
Sagging	-21956 kNm
Maximum Bending Moments (Harbour Condition)
Hogging	25580 kNm
Sagging	-21101 kNm
Engine:	2 x VOLVO PENTA D13, 450 PS Marine Propulsion, 1800Rpm
Reduction Gear:	TwinDisc
Bow Thruster:	1 x Verhaar Omega 3100-4K, EMotor 282 KW
Propeller Nozzles:	2 x Type HR, Ø1260 x 625, Eurotehnic Grup
Winches, Anchers, Kettings:	SC Tripomet Ship Equipment SRL
Shipyards
The Shipyard Which Built the Casco Ship	Santierul Naval Orsova SA, Romania
Ship Broker Which Delivered the Casco Ship	VOS Kaiser GmbH, Germany
The Shipyard Which Completed the Ship	Kötter Werft GmbH, Haren / Ems, Germany
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 201820
OWNER:	V-SHIPPING NV, Merksem
NAME:	ODYSSEE
REGISTRATION:	AHN
FLAG:	LUXEMBURG
SHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation: Vlissingen - Nieuwpoort
Wave Height:	"Estuaire Navigation Significant Wave Height v. 2.00m"
Dimensions
Length Over All (Loa)	110.000 m
Breadth Over All (Boa)	11.460 m
Depth (D)	6.000 m
Draught (T)	4.300 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	4,007.980 m³
Cargo Tanks with Longitudinal Bulkhead	10.000 Pcs
Cargo Tank / Center Tank	1.000 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	HULL MC 5 IN (2,0) Z
Service Notations:	TANKER / ADNR TYPE C / DOUBLE HULL / 2R DP=57,5kPa / TP=65kPa / MAXIMUM DENSITY 1t/m³
Navigation Notations:	IN
Machinery:	MC
Maximum Bending Moments (Loa=110m)
Hogging	145000 kNm
Sagging	145000 kNm
Engine:	2x CAT 3508C DITA Marine Propulsion, RH Service, Keel Cooler
Shipyards
The Shipyard Which Built the Casco Ship	Shipyard JSHT, China
Ship Broker Which Delivered the Casco Ship	Rensen-Driessen Shipbuilding B.V., the Netherlands
The Shipyard Which Completed the Ship	Den Breejen Shipyard, Hardinxveld-Giessendam, the Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 201514
OWNER:	Wolf-Peter & Henning Jahn GbR
NAME:	HANSE
REGISTRATION:	MAGDEBURG
FLAG:	GERMANY
SHIP TYPE:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Areas:	Inland Navigation
Dimensions
Length Over All (Loa)	100.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	3,20 / 3,60 m
Capacity
Container Capacity (4 layers)	192.000 TEU
Classification:	ZSUK
Engine:	2x Caterpillar C-32 SCAC, 2x559Kw, 325tpm
Bow Thruster:	1x Verhaar Omega 4 Channel Thruster 41120-4k
Propeller Nozzles:	2 x Type HR, Ø1560 x 775, Eurotehnic Grup
Winches, Anchers, Kettings:	van Wijk Werkendam
Shipyards
The Shipyard Which Built the Casco Ship	Santierul Naval Orsova SA, Romania
Ship Broker Which Delivered the Casco Ship	VOS Kaiser GmbH, Germany
The Shipyard Which Completed the Ship	Kötter Werft GmbH, Haren / Ems, Germany
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20081
OWNER:	LUX SHIPPING AG
NAME:	EUROPORTS
REGISTRATION:	REMICH
FLAG:	LUXEMBOURG
SHIP TYPE:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation
Wave Height:	Estuaire Navigation Significant Wave Height v. 1.3m
Dimensions
Length Over All (Loa)	134.310 m
Breadth Over All (Boa)	14.500 m
Depth (D)	5.700 m
Capacity
Container Capacity (4 layers)	336.000 TEU
Container Capacity (5 layers)	406.000 TEU
Classification:	BUREAU VERITAS
Main Class Symbols:	I5 IN (H13) Z
Service Notations:	CONTAINER VESSEL / DOUBLE HULL / 2R / ADNR DG DOUBLE HULL
Machinery:	MC
Engine:	2x ABC 6MDZC-750-178-A, 1066kW / 750 tpm
Bow Thruster:	2x Veth Thruster MD 4K1300
Shipyards
The Shipyard Which Built the Casco Ship	Sainty Marine Shipbuilding, Nanjing, China
The Shipyard Which Completed the Ship	Bartholomeeusen Antwerp, Belgium
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 201434
Note:	Newbuilding Mid Ship
OWNER:	Navirom AG
NAME:	BENJAMIN
REGISTRATION:	BASEL
FLAG:	SWITZERLAND
SHIP TYPE:	TANK SHIP TYP C
Navigation Areas:	Inland Navigation
Dimensions
Length Over All (Loa)	110.000 m
Breadth Over All (Boa)	11.450 m
Depth (H)	4.500 m
Draught (T)	4.300 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	3,040.000 m³
Cargo Center Tanks	8.000 Pcs
Classification:	GERMANISCHER LLOYD
Main Class Symbols:	100 A5 IN (0,6) Z
Service Notations:	Tanker / DP=50kPa / TP=65kPa ADNR TYPE C / Maximum Density 1t/m³
Engine:	DEUZ SRV6M628
Class Drawings:	BING Kaiser

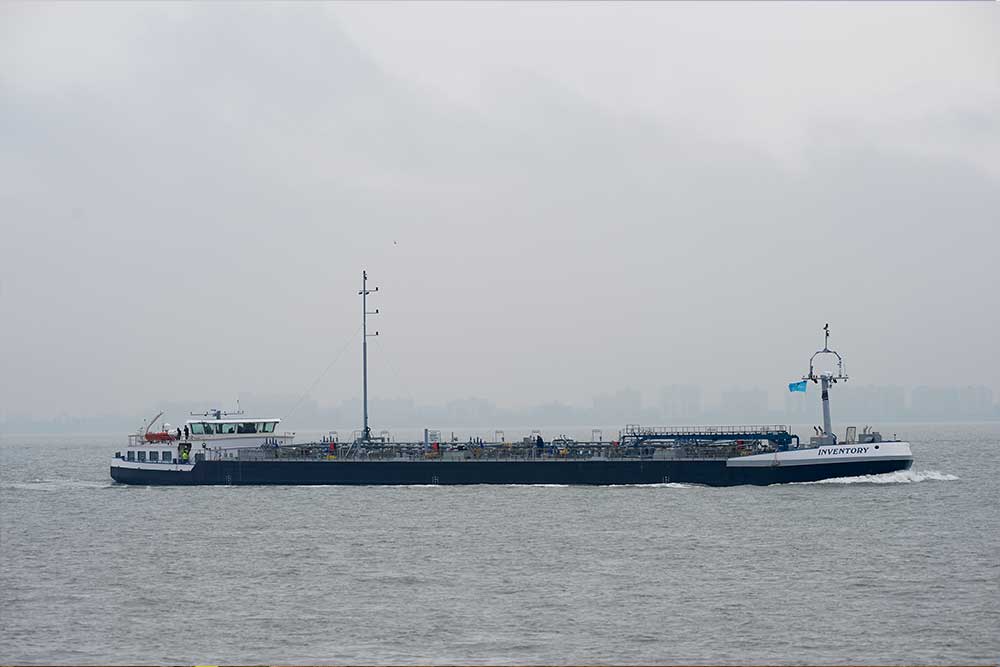

MAIN DATA
PROJECT No.:	BING Kaiser - 20108
OWNER:	AMELIE SHIPPING SARL, Remich
NAME:	INVENTORY
REGISTRATION:	ANTWERPEN
FLAG:	LUXEMBOURG
SHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP
Navigation Areas:	Inland and Estuary Navigation
Wave Height:	"Estuaire Navigation Significant Wave Height v. 1.20m"
Dimensions
Length Over All (Loa)	110.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	5.570 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	3,732.0 m³
Cargo Tanks with Longitudinal Bulkhead	10.000 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	I5 IN (1,2) Z
Service Notations:	TANKER / DOUBLE HULL / DP=57,5kPa / TP=65kPa 2R, ADNR TYPE C / Maximum Density 1t/m³
Machinery:	MC
Maximum Bending Moments
Hogging	74877 kNm
Sagging	107044 kNm
Engine:	ABC 6MDZC-750-178-A, 1066kW / 750 tpm
Bow Thruster:	Verhaar Omega 31135S1400-4k, 727HP / 2100tpm
Lading Pumps:	2 x Bornemann HC232-85/2
Shipyards
The Shipyard Which Built the Casco Ship	SC Santierul Naval Orsova SA, Romania
Ship Broker Which Delivered the Casco Ship	Erlenbacher Schiffswerft Maschinen-und Stahlbau GmbH, Germany
The Shipyard Which Completed the Ship	TeamCo Shipyard BV Heusden, The Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20097
OWNER:	SEATRA BVBA., St`Job in`t Goor
NAME:	MONTANA
REGISTRATION:	ANTWERPEN
FLAG:	BELGIUM
SHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation: Vlissingen - Nieuwpoort
Wave Height:	"Estuaire Navigation Significant Wave Height v. 2.00m"
Dimensions
Length Over All (Loa)	121.160 m
Breadth Over All (Boa)	11.460 m
Depth (D)	6.000 m
Draught (T)	4.300 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	4,552.000 m³
Capacity of Cargo Tanks (T(4,80m))	4,451.000 m³
Cargo Tanks with Longitudinal Bulkhead	12.000 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	X I5 IN (2,0) Z
Service Notations:	Tanker / Double Hull / DP=57,5kPa / TP=65kPa 2R / ADNR TYPE C / Maximum Density 1t/m³
Navigation Notations:	IN
Machinery:	MC
Scantling Dimensions
Length Over All (Loa)	132.200 m
Breadth Over All (Boa)	11.460 m
Depth (D)	6.000 m
Draught (T)	4.300 m
Maximum Bending Moments
Hogging	145000 kNm
Sagging	145000 kNm
Engine:	2x ABC 6MDZC-750-178-A, 2x1066kW / 750 tpm
Diesel Generators:	1x 134 kVA - 107 kW 1x 134 kVA - 107 kW 1x 570 kVA - 456 kW
Bow Thruster:	2x Veth Jet 4K-1000
Lading Pumps:	2x Bornemann HC232-85/2
Winches, Anchers, Kettings:	SC Tripomet Ship Equipment SRL
Wheelhouse:	SC Santierul Naval Orsova SA, Kampers NV
Shipyards
The Shipyard Which Built the Casco Ship	SC Santierul Naval Orsova SA, Romania
Ship Broker Which Delivered the Casco Ship	Erlenbacher Schiffswerft Maschinen-und Stahlbau GmbH, Germany
The Shipyard Which Completed the Ship	TeamCo Shipyard BV Heusden, The Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20093
OWNER:	ESTRA AG BASEL
NAME:	FREIENSTEIN
REGISTRATION:	BASEL
FLAG:	SWITZERLAND
SHIP TYPE:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Area:	Inland Navigation
Dimensions
Length Over All (Loa)	135.000 m
Breadth Over All (Boa)	14.350 m
Depth (D)	4.500 m
Capacity
Container Capacity (4 layers)	332.000 TEU
Cargo Capacity	4.044 to
Classification:	GERMANISCHER LLOYD
Main Class Symbols:	I100A5, IN (0,6)
Service Notations:	CARGO VESSEL / DOUBLE HULL / EQUIPPED FOR TRANSPORT OF CONTAINERS
Engine:	2x Mitsubishi Marine Diesel Engine S6U-C2PMTK(FW) 2x 1.007 KW / 2 x 1.369 PS
Bow Thruster:	1x Veth Jet 4K1400, 725kW / 1800 tpm
Shipyards
The Shipyard Which Built the Casco Ship	Tongzhou Haitong ship rebuild Co. Ltd te Tongzhou Nan Tong, China
The Shipyard Which Completed the Ship	Den Breejen Shipyard, Hardinxveld-Giessendam, the Netherlands and Breko Scheepsbouw & Reparatie, The Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20091
OWNER:	MICHAND NV
NAME:	MOZART
REGISTRATION:	ANTWERPEN
FLAG:	BELGIUM
TANKSHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation: Vlissingen - Nieuwpoort
Wave Height:	"Estuaire Navigation Significant Wave Height v. 1.70m"
Dimensions
Length Over All (Loa)	86.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	6.000 m
Draught (D)	4.300 m
Total Capacity of Cargo Tanks (V(100%))	2,885.000 m³
Cargo Tanks with Longitudinal Bulkhead	8.000 Pcs
Cargo Center Tanks	1.000 Pcs
Deadweight:	577,888.000 t
Classification:	BUREAU VERITAS
Main Class Symbols:	I5 IN (1,7) Z
Service Notations:	Tanker / Double Hull / DP=57,5kPa / TP=65kPa 2R / ADNR TYPE C / Maximum Density 1t/m³
Navigation Notations:	IN
Machinery:	MC
Equipment:	2(Ch30Q2)
Maximum Bending Moments:
Hogging	145000 kNm
Sagging	145000 kNm
Ship Length Scanting	135.00 m
Engine:	2x Caterpillar
Total Power:	1568 kW / 2130 HP
Diesel Generators:	2x 85 kVA - 66 kW 1x 450 kVA - 360 kW
Bow Thruster:	2x Veth Jet 4K-1000
Shipyards
The Shipyard Which Built the Casco Ship	Shipyard Melnik, Czech Republic
The Shipyard Which Completed the Ship	VEKA Shipbuilding BV Werkendam, The Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 201581
OWNER:	Gustav Kern e.K.
NAME:	MICHAEL KRIEGER
REGISTRATION:	REMSECK
FLAG:	GERMANY
CARGO SHIP
Navigation Type:	Inland Navigation
Dimensions
Length Over All (Loa)	105.000 m
Breadth Over All (Boa)	11.000 m
Depth (D)	3.200 m
Classification:	ZSUK
Engine:	1x ABC 6 DZC, 1x1325kW / 1000tpm
Bow Thruster:	1x Verhaar Omega 4 Channel Thruster Ø1400 MKIC Scania DI 16-42M 650HP / 2100tpm
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20071
OWNER:	M&M Shipping NV
NAME:	NEW YORK
REGISTRATION:	ANTWERPEN
FLAG:	BELGIUM
TANKSHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation: Oostende - Zeebrugge
Wave Height:	"Estuaire Navigation Significant Wave Height v. 1.90m"
Dimensions
Length Over All (Loa)	125.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	6.000 m
Cargo Capacity
Total Capacity of Cargo Tanks (V(100%))	4,560.000 m³
Cargo Tanks with Longitudinal Bulkhead	12.000 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	I5 IN (1,9) Z
Service Notations:	Tanker / Double Hull / DP=57,5kPa / TP=65kPa 2R / ADNR TYPE C / Maximum Density 1t/m³
Navigation Notations:	IN
Machinery:	MC
Maximum Bending Moments (Wave Bending Moment Included)
Hogging	145000 kNm
Sagging	145000 kNm
Engine:	2x Caterpillar
Total Power:	1568 kW / 2130 HP
Diesel Generators
1x 71 kVA - 57 kW
1x 17 kVA - 86 kW
1x 500 kVA - 400 kW
Bow Thruster:	2x Veth Jet 4K-1000
Shipyards
The Shipyard Which Built the Casco Ship	Sainty Marine Shipbuilding, Nanjing, China
The Shipyard Which Completed the Ship	Smits Machinefabriek en Scheepsreparatie B.V., The Netherlands
Class Drawings:	BING Kaiser
