MAIN DATA
PROJECT No.:	BING Kaiser - 201832
OWNER:	Tankschifffahrt Nortorf Verwaltungs GmbH
NAME:	HOLSTEIN
REGISTRATION:	HAMBURG
FLAG:	GERMANY
SHIP TYPE:	TANKSHIP TYP C / DOUBLE SCREW
Navigation Areas:	Inland Navigation
Dimensions
Length Over All (Loa)	86.00 m
Breadth Over All (Boa)	9.60 m
Depth (D)	4.60 m
Draught (T)	2.80 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	1,885.00 m³
Cargo Tank / Center Tank	5.00 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	I 5 IN (0,6) Z
Service Notations:	TANKER / DOUBLE HULL / DP=57,5kPa / TP=65kPa / 2R ADN TYPE C / MAXIMUM CARGO DENSITY 1,0t/m³
Machinery:	● MC
Maximum Bending Moments (Navigation Condition)
Hogging	25291 kNm
Sagging	-21956 kNm
Maximum Bending Moments (Harbour Condition)
Hogging	25580 kNm
Sagging	-21101 kNm
Engine:	2 x VOLVO PENTA D13, 450 PS Marine Propulsion, 1800Rpm
Reduction Gear:	TwinDisc
Bow Thruster:	1 x Verhaar Omega 3100-4K, EMotor 282 KW
Propeller Nozzles:	2 x Type HR, Ø1260 x 625, Eurotehnic Grup
Winches, Anchers, Kettings:	SC Tripomet Ship Equipment SRL
Shipyards
The Shipyard Which Built the Casco Ship	Santierul Naval Orsova SA, Romania
Ship Broker Which Delivered the Casco Ship	VOS Kaiser GmbH, Germany
The Shipyard Which Completed the Ship	Kötter Werft GmbH, Haren / Ems, Germany
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 201820
OWNER:	V-SHIPPING NV, Merksem
NAME:	ODYSSEE
REGISTRATION:	AHN
FLAG:	LUXEMBURG
SHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation: Vlissingen - Nieuwpoort
Wave Height:	"Estuaire Navigation Significant Wave Height v. 2.00m"
Dimensions
Length Over All (Loa)	110.000 m
Breadth Over All (Boa)	11.460 m
Depth (D)	6.000 m
Draught (T)	4.300 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	4,007.980 m³
Cargo Tanks with Longitudinal Bulkhead	10.000 Pcs
Cargo Tank / Center Tank	1.000 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	HULL MC 5 IN (2,0) Z
Service Notations:	TANKER / ADNR TYPE C / DOUBLE HULL / 2R DP=57,5kPa / TP=65kPa / MAXIMUM DENSITY 1t/m³
Navigation Notations:	IN
Machinery:	MC
Maximum Bending Moments (Loa=110m)
Hogging	145000 kNm
Sagging	145000 kNm
Engine:	2x CAT 3508C DITA Marine Propulsion, RH Service, Keel Cooler
Shipyards
The Shipyard Which Built the Casco Ship	Shipyard JSHT, China
Ship Broker Which Delivered the Casco Ship	Rensen-Driessen Shipbuilding B.V., the Netherlands
The Shipyard Which Completed the Ship	Den Breejen Shipyard, Hardinxveld-Giessendam, the Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 201514
OWNER:	Wolf-Peter & Henning Jahn GbR
NAME:	HANSE
REGISTRATION:	MAGDEBURG
FLAG:	GERMANY
SHIP TYPE:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Areas:	Inland Navigation
Dimensions
Length Over All (Loa)	100.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	3,20 / 3,60 m
Capacity
Container Capacity (4 layers)	192.000 TEU
Classification:	ZSUK
Engine:	2x Caterpillar C-32 SCAC, 2x559Kw, 325tpm
Bow Thruster:	1x Verhaar Omega 4 Channel Thruster 41120-4k
Propeller Nozzles:	2 x Type HR, Ø1560 x 775, Eurotehnic Grup
Winches, Anchers, Kettings:	van Wijk Werkendam
Shipyards
The Shipyard Which Built the Casco Ship	Santierul Naval Orsova SA, Romania
Ship Broker Which Delivered the Casco Ship	VOS Kaiser GmbH, Germany
The Shipyard Which Completed the Ship	Kötter Werft GmbH, Haren / Ems, Germany
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20081
OWNER:	LUX SHIPPING AG
NAME:	EUROPORTS
REGISTRATION:	REMICH
FLAG:	LUXEMBOURG
SHIP TYPE:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation
Wave Height:	Estuaire Navigation Significant Wave Height v. 1.3m
Dimensions
Length Over All (Loa)	134.310 m
Breadth Over All (Boa)	14.500 m
Depth (D)	5.700 m
Capacity
Container Capacity (4 layers)	336.000 TEU
Container Capacity (5 layers)	406.000 TEU
Classification:	BUREAU VERITAS
Main Class Symbols:	I5 IN (H13) Z
Service Notations:	CONTAINER VESSEL / DOUBLE HULL / 2R / ADNR DG DOUBLE HULL
Machinery:	MC
Engine:	2x ABC 6MDZC-750-178-A, 1066kW / 750 tpm
Bow Thruster:	2x Veth Thruster MD 4K1300
Shipyards
The Shipyard Which Built the Casco Ship	Sainty Marine Shipbuilding, Nanjing, China
The Shipyard Which Completed the Ship	Bartholomeeusen Antwerp, Belgium
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 201434
Note:	Newbuilding Mid Ship
OWNER:	Navirom AG
NAME:	BENJAMIN
REGISTRATION:	BASEL
FLAG:	SWITZERLAND
SHIP TYPE:	TANK SHIP TYP C
Navigation Areas:	Inland Navigation
Dimensions
Length Over All (Loa)	110.000 m
Breadth Over All (Boa)	11.450 m
Depth (H)	4.500 m
Draught (T)	4.300 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	3,040.000 m³
Cargo Center Tanks	8.000 Pcs
Classification:	GERMANISCHER LLOYD
Main Class Symbols:	100 A5 IN (0,6) Z
Service Notations:	Tanker / DP=50kPa / TP=65kPa ADNR TYPE C / Maximum Density 1t/m³
Engine:	DEUZ SRV6M628
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20108
OWNER:	AMELIE SHIPPING SARL, Remich
NAME:	INVENTORY
REGISTRATION:	ANTWERPEN
FLAG:	LUXEMBOURG
SHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP
Navigation Areas:	Inland and Estuary Navigation
Wave Height:	"Estuaire Navigation Significant Wave Height v. 1.20m"
Dimensions
Length Over All (Loa)	110.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	5.570 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	3,732.0 m³
Cargo Tanks with Longitudinal Bulkhead	10.000 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	I5 IN (1,2) Z
Service Notations:	TANKER / DOUBLE HULL / DP=57,5kPa / TP=65kPa 2R, ADNR TYPE C / Maximum Density 1t/m³
Machinery:	MC
Maximum Bending Moments
Hogging	74877 kNm
Sagging	107044 kNm
Engine:	ABC 6MDZC-750-178-A, 1066kW / 750 tpm
Bow Thruster:	Verhaar Omega 31135S1400-4k, 727HP / 2100tpm
Lading Pumps:	2 x Bornemann HC232-85/2
Shipyards
The Shipyard Which Built the Casco Ship	SC Santierul Naval Orsova SA, Romania
Ship Broker Which Delivered the Casco Ship	Erlenbacher Schiffswerft Maschinen-und Stahlbau GmbH, Germany
The Shipyard Which Completed the Ship	TeamCo Shipyard BV Heusden, The Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20097
OWNER:	SEATRA BVBA., St`Job in`t Goor
NAME:	MONTANA
REGISTRATION:	ANTWERPEN
FLAG:	BELGIUM
SHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation: Vlissingen - Nieuwpoort
Wave Height:	"Estuaire Navigation Significant Wave Height v. 2.00m"
Dimensions
Length Over All (Loa)	121.160 m
Breadth Over All (Boa)	11.460 m
Depth (D)	6.000 m
Draught (T)	4.300 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	4,552.000 m³
Capacity of Cargo Tanks (T(4,80m))	4,451.000 m³
Cargo Tanks with Longitudinal Bulkhead	12.000 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	X I5 IN (2,0) Z
Service Notations:	Tanker / Double Hull / DP=57,5kPa / TP=65kPa 2R / ADNR TYPE C / Maximum Density 1t/m³
Navigation Notations:	IN
Machinery:	MC
Scantling Dimensions
Length Over All (Loa)	132.200 m
Breadth Over All (Boa)	11.460 m
Depth (D)	6.000 m
Draught (T)	4.300 m
Maximum Bending Moments
Hogging	145000 kNm
Sagging	145000 kNm
Engine:	2x ABC 6MDZC-750-178-A, 2x1066kW / 750 tpm
Diesel Generators:	1x 134 kVA - 107 kW 1x 134 kVA - 107 kW 1x 570 kVA - 456 kW
Bow Thruster:	2x Veth Jet 4K-1000
Lading Pumps:	2x Bornemann HC232-85/2
Winches, Anchers, Kettings:	SC Tripomet Ship Equipment SRL
Wheelhouse:	SC Santierul Naval Orsova SA, Kampers NV
Shipyards
The Shipyard Which Built the Casco Ship	SC Santierul Naval Orsova SA, Romania
Ship Broker Which Delivered the Casco Ship	Erlenbacher Schiffswerft Maschinen-und Stahlbau GmbH, Germany
The Shipyard Which Completed the Ship	TeamCo Shipyard BV Heusden, The Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20091
OWNER:	MICHAND NV
NAME:	MOZART
REGISTRATION:	ANTWERPEN
FLAG:	BELGIUM
TANKSHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation: Vlissingen - Nieuwpoort
Wave Height:	"Estuaire Navigation Significant Wave Height v. 1.70m"
Dimensions
Length Over All (Loa)	86.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	6.000 m
Draught (D)	4.300 m
Total Capacity of Cargo Tanks (V(100%))	2,885.000 m³
Cargo Tanks with Longitudinal Bulkhead	8.000 Pcs
Cargo Center Tanks	1.000 Pcs
Deadweight:	577,888.000 t
Classification:	BUREAU VERITAS
Main Class Symbols:	I5 IN (1,7) Z
Service Notations:	Tanker / Double Hull / DP=57,5kPa / TP=65kPa 2R / ADNR TYPE C / Maximum Density 1t/m³
Navigation Notations:	IN
Machinery:	MC
Equipment:	2(Ch30Q2)
Maximum Bending Moments:
Hogging	145000 kNm
Sagging	145000 kNm
Ship Length Scanting	135.00 m
Engine:	2x Caterpillar
Total Power:	1568 kW / 2130 HP
Diesel Generators:	2x 85 kVA - 66 kW 1x 450 kVA - 360 kW
Bow Thruster:	2x Veth Jet 4K-1000
Shipyards
The Shipyard Which Built the Casco Ship	Shipyard Melnik, Czech Republic
The Shipyard Which Completed the Ship	VEKA Shipbuilding BV Werkendam, The Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 201581
OWNER:	Gustav Kern e.K.
NAME:	MICHAEL KRIEGER
REGISTRATION:	REMSECK
FLAG:	GERMANY
CARGO SHIP
Navigation Type:	Inland Navigation
Dimensions
Length Over All (Loa)	105.000 m
Breadth Over All (Boa)	11.000 m
Depth (D)	3.200 m
Classification:	ZSUK
Engine:	1x ABC 6 DZC, 1x1325kW / 1000tpm
Bow Thruster:	1x Verhaar Omega 4 Channel Thruster Ø1400 MKIC Scania DI 16-42M 650HP / 2100tpm
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20071
OWNER:	M&M Shipping NV
NAME:	NEW YORK
REGISTRATION:	ANTWERPEN
FLAG:	BELGIUM
TANKSHIP TYPE:	TANKSHIP TYP C / BUNKERSHIP / DOUBLE SCREW
Navigation Areas:	Inland and Estuary Navigation: Oostende - Zeebrugge
Wave Height:	"Estuaire Navigation Significant Wave Height v. 1.90m"
Dimensions
Length Over All (Loa)	125.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	6.000 m
Cargo Capacity
Total Capacity of Cargo Tanks (V(100%))	4,560.000 m³
Cargo Tanks with Longitudinal Bulkhead	12.000 Pcs
Classification:	BUREAU VERITAS
Main Class Symbols:	I5 IN (1,9) Z
Service Notations:	Tanker / Double Hull / DP=57,5kPa / TP=65kPa 2R / ADNR TYPE C / Maximum Density 1t/m³
Navigation Notations:	IN
Machinery:	MC
Maximum Bending Moments (Wave Bending Moment Included)
Hogging	145000 kNm
Sagging	145000 kNm
Engine:	2x Caterpillar
Total Power:	1568 kW / 2130 HP
Diesel Generators
1x 71 kVA - 57 kW
1x 17 kVA - 86 kW
1x 500 kVA - 400 kW
Bow Thruster:	2x Veth Jet 4K-1000
Shipyards
The Shipyard Which Built the Casco Ship	Sainty Marine Shipbuilding, Nanjing, China
The Shipyard Which Completed the Ship	Smits Machinefabriek en Scheepsreparatie B.V., The Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	Schiffswerft Ebert - 269
OWNER:	MOSELTANK AG (L)
NAME:	NAVIRA
REGISTRATION:	GREVENMACHER
FLAG:	LUXEMBURG
Ship Type:	TANKSHIP TYP C / BUNKERSHIP / DOUBLE SCREW
Navigation Area:	INLAND AND ESTUARY BELGIUM NAVIGATION
Dimensions
Length Over All (Loa)	135.000 m
Breadth Over All (Boa)	16.800 m
Depth (D)	5.750 m
Draught (T)	4.550 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	7,600.000 m³
Cargo Tanks with Longitudinal Bulkhead	20.000 Pcs
Classification
Classification:	BUREAU VERITAS
Main Class Symbols:	I3/3 (E) NI 1
Service Notations:	TANKER / FLAM / TOX / COR (SP=50 kPa; TP=65 kPa) ADNR TYPE C / Maximum Density 1 t/m³
Pipe Systems:	For cargo with flash point below 61°C max. Cargo density = 1.1 t/m³
Machinery:	MC
Machinery and Equipment
Engine:	2x CATERPILLAR 3516B, 1,491 kW (2,026 HP) / 1,600 rpm
Reversing Reduction Gearbox:	2x REINTJES, WAV-1400 type, ratio 4:1
Aft Ship Thruster:	1x Veth Jet, 2K
Bow Thruster:	2x Veth Jet (1x 3K – 550 HP, 1x 4K – 400 HP)
Lading Pumps:	3x Bornemann, 650 m³/h at 0.8 MPa
Winches, Anchors, Chains:	SC Tripomet Ship Equipment SRL
Shipyards
The Shipyard Which Built the Casco Ship:	SC Navol SA, Romania
Ship Broker Which Delivered the Casco Ship:	Philipp Ebert & Söhne GmbH, Neckarsteinach, Germany
The Shipyard Which Completed the Ship:	SMITS Machinefabriek en Scheepsreparatie BV, Krimpen aan de Lek, Netherlands
Class Drawings:	Tiberius Kaiser, VIM Proiect, Schiffswerft Ebert

MAIN DATA
PROJECT No.:	Schiffswerft Ebert - 256
OWNER:	Jan Pruyn, Bernard Tonissen, William Tonissen (NL)

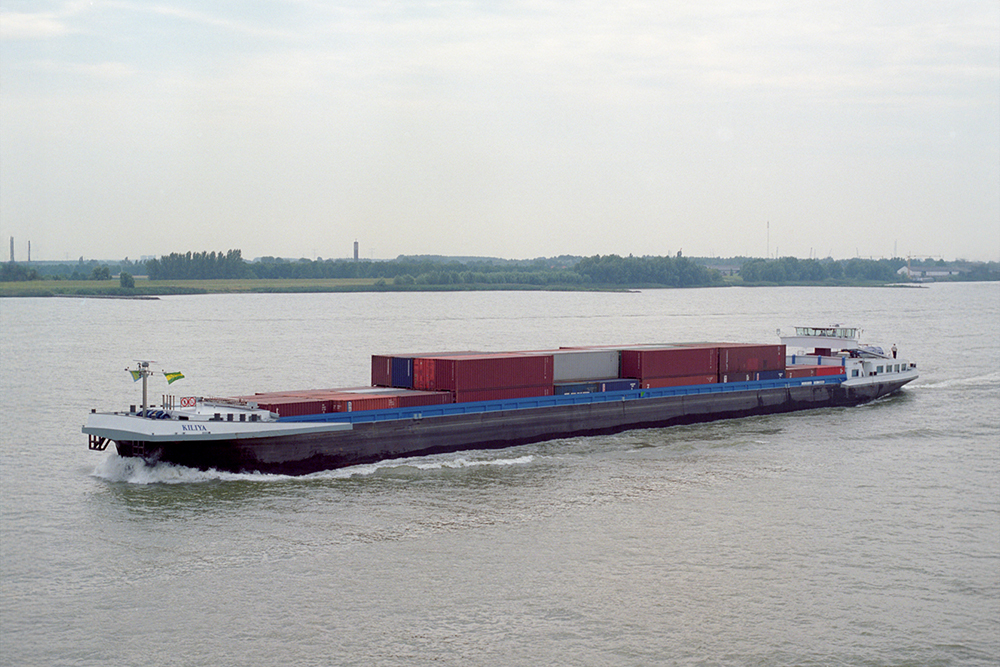

NAME:	KILIYA
REGISTRATION:	NIJMEGEN
FLAG:	NETHERLANDS
Ship Type:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	110.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	3.600 / 3.900 m
Capacity
Container Capacity (4 Layers)	204.000 TEU
Classification
Classification:	GERMANISCHER LLOYD / ADNR 1995 / NSI
Main Class Symbols:	100 A 5 I
Service Notations:	DOUBLE HULL VESSEL / CONTAINERS VESSEL According to ADNR Marginal 110.291
Machinery:	MC
Machinery and Equipment
Engine:	2 x Caterpillar 3512B HD, ZF BW 461
Bow Thruster:	2 x 4 Kanal Veth Motoren BV
Propeller Nozzles:	2 x Lips 1700 mm
Winches, Anchors, Chains:	Schelling Maritiem B.V. / Menarom Galati
Shipyards
The Shipyard Which Built the Casco Ship:	Shipyard Kiliya, Ukraine
Ship Broker Which Delivered the Casco Ship:	Philipp Ebert & Söhne GmbH, Schiffswerft, Neckarsteinach, Germany
The Shipyard Which Completed the Ship:	Scheepsreparatiebedrijf De Gerlien-van Tiem B.V., Druten, Netherlands
Class Drawings:	Tiberius Kaiser, Tech Design, Schiffswerft Ebert

SIMILAR SHIP / SISTER SHIP
PROJECT No.:	Schiffswerft Ebert - 251
OWNER:	Willy en Sonia De Seck (B)
NAME:	W. DE SECK Jr.
REGISTRATION:	MERKSEM
FLAG:	BELGIUM
Class Drawings:	Tiberius Kaiser, Tech Design, Schiffswerft Ebert

MAIN DATA
PROJECT No.:	BING Kaiser - 20093
OWNER:	ESTRA AG BASEL
NAME:	FREIENSTEIN
REGISTRATION:	BASEL
FLAG:	SWITZERLAND
Ship Type:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	135.000 m
Breadth Over All (Boa)	14.350 m
Depth (D)	4.500 m
Capacity
Container Capacity (4 Layers)	332.000 TEU
Cargo Capacity	4.044 to
Classification
Classification:	GERMANISCHER LLOYD
Main Class Symbols:	X I100A5, IN (0,6)
Service Notations:	CARGO VESSEL / DOUBLE HULL Equipped for Transport of Containers
Machinery and Equipment
Engine:	2x Mitsubishi Marine Diesel Engine S6U-C2PMTK(FW) 2x 1.007 kW / 2x 1.369 PS
Bow Thruster:	1x Veth Jet 4K1400, 725 kW / 1800 tpm
Shipyards
The Shipyard Which Built the Casco Ship:	Tongzhou Haitong Ship Rebuild Co. Ltd, Tongzhou Nan Tong, China
The Shipyard Which Completed the Ship:	Den Breejen Shipyard, Hardinxveld-Giessendam, The Netherlands Breko Scheepsbouw & Reparatie, The Netherlands
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	BING Kaiser - 20107
OWNER:	Franconia Besitzgesellschaft GbR
NAME:	FRANCONIA
REGISTRATION:	WÖRTH am MAIN
FLAG:	GERMANY
Ship Type:	TANKSHIP TYP C
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	110.000 m
Breadth Over All (Boa)	11.450 m
Depth (H)	4.500 m
Draught (T)	4.300 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	3,032.215 m³
Cargo Center Tanks	8.000 Pcs
Classification
Classification:	GERMANISCHER LLOYD
Main Class Symbols:	100 A5 IN (0,6) Z
Service Notations:	TANKER / DP=50kPa / TP=65kPa ADNR TYPE C / Maximum Density 1t/m³
Design Data
Design Bending Moments (GL)	+45,726 / -41,453 kNm
Including Wave Bending Moment	5,819 kNm
Machinery and Equipment
Engine:	ABC
Total Power:	1,324 kW / 1,800 HP
Diesel Generators:	1x 525 kVA, 1x 45 kVA, 1x 63 kVA, 1x 138 kVA
Bow Thruster:	Van Tiem, 375 kW
Shipyards
The Shipyard Which Built the Casco Ship:	Shipyard Bakmet Usti, Czech Republic
The Shipyard Which Completed the Ship:	Erlenbacher Schiffswerft Maschinen-und Stahlbau GmbH, Germany
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	Schiffswerft Ebert - 278
OWNER:	VOF Mandemaker de Haan (NL)

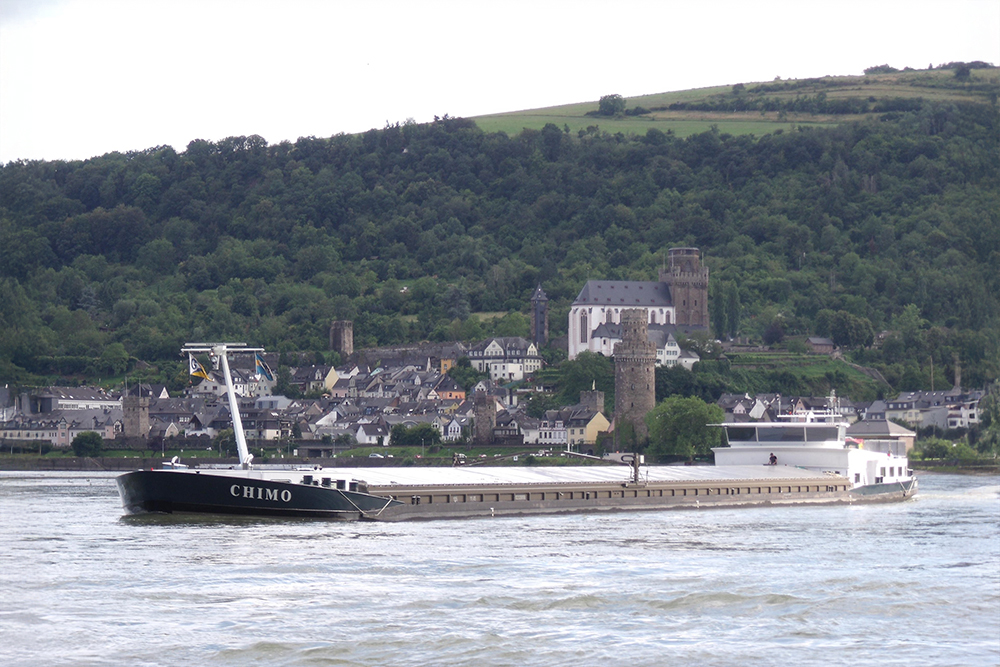

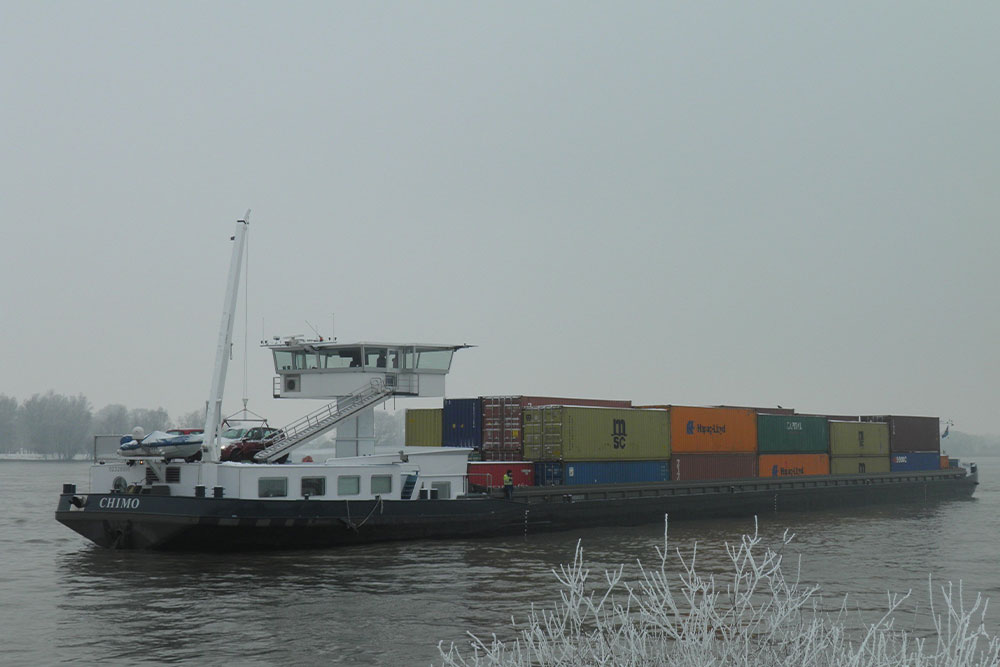

NAME:	CHIMO
REGISTRATION:	DORDRECHT
FLAG:	NETHERLANDS
Current Name:	EL TEIDE
Ship Type:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	105.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	3.35 / 3.60 m
Capacity
Container Capacity (4 Layers)	184.000 TEU
Classification
Classification:	BUREAU VERITAS / ADNR / NSI
Main Class Symbols:	I 3/3 (E) NI 2
Service Notations:	DOUBLE HULL VESSEL / CONTAINERS VESSEL According to ADNR Marginal 110.291
Machinery:	MC
Machinery and Equipment
Engine:	1x Caterpillar 3512B HD, WAF 762 HOR EXH
Bow Thruster:	van Wijk Werkendam
Propeller Nozzles:	Optima 1750 mm, Promarin
Winches, Anchors, Chains:	van Wijk Werkendam / Menarom Galati
Shipyards
The Shipyard Which Built the Casco Ship:	Shipyard Kiliya, Ukraine
Ship Broker Which Delivered the Casco Ship:	Philipp Ebert & Söhne GmbH, Schiffswerft, Neckarsteinach, Germany
The Shipyard Which Completed the Ship:	Scheepsreparatiebedrijf De Gerlien-van Tiem B.V., Druten, Netherlands
Class Drawings:	Tiberius Kaiser, Navproiect, Schiffswerft Ebert

MAIN DATA
PROJECT No.:	Schiffswerft Ebert - 272
OWNER:	JÖRG W. SCHEPERS (D)

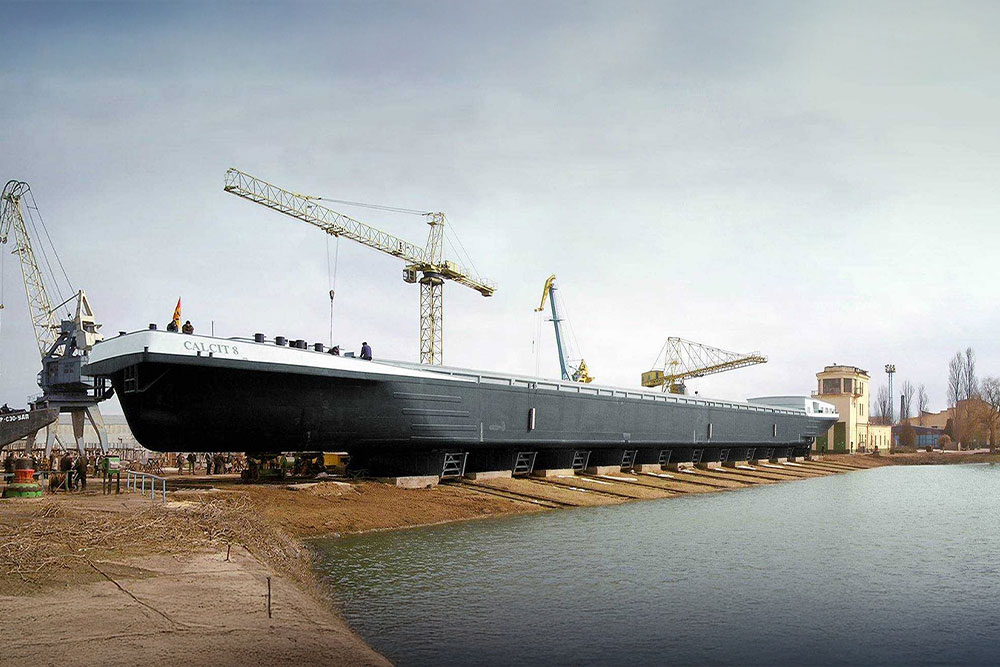

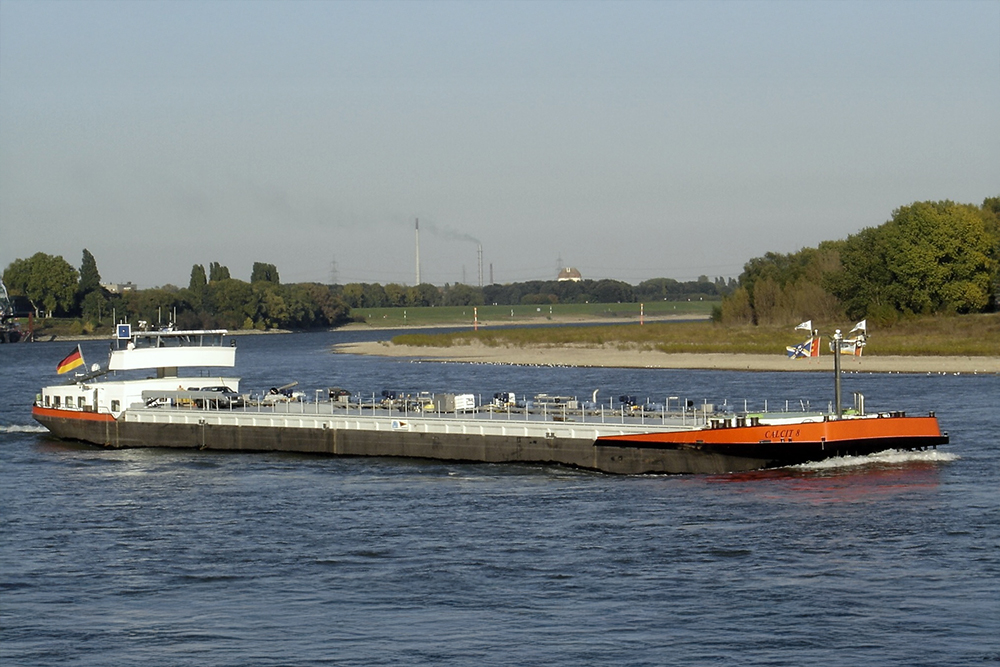

NAME:	CALCIT 8
REGISTRATION:	HAGEN
FLAG:	DEUTSCHLAND
SHIP TYPE:	CONTAINER SHIP / RECEPTACLE SHIP – Transport of Calcium Carbonate
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	100.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	3.900 m
Classification
Classification:	NSI
Remarks:	Non classed vessel / Review of hull drawings by BV Antwerp and supervision by BV Odessa according to Bureau Veritas Rules for the classification of Inland Navigation Vessels
Machinery and Equipment
Engine:	1x MTU 12V 4000M60, 1780 HP, Reintjes WAF 762
Bow Thruster:	Scheepsreparatiebedrijf De Gerlien-van Tiem B.V. MKIC-1200, Cummins N14-2, 535 HP
Propeller Nozzles:	Promarin Propeller, Van de Giessen Straalbuizen Optima 1800 mm
Rudder Installation / Shaft System:	De Waal BV
Winches, Anchors, Chains:	Tripomet Galati SRL
Wheelhouse, Accommodations:	Wessels GmbH
Shipyards
The Shipyard Which Built the Casco Ship:	Shipyard Kiliya, Ukraine
Ship Broker Which Delivered the Casco Ship:	Philipp Ebert & Söhne GmbH, Neckarsteinach, Germany
The Shipyard Which Completed the Ship:	Schulte+Müller Schiffswerft GmbH, Haren Ems, Germany Scheepsreparatiebedrijf De Gerlien-van Tiem B.V., Druten, Netherlands
Class Drawings:	Tiberius Kaiser, Telesoft, Schiffswerft Ebert

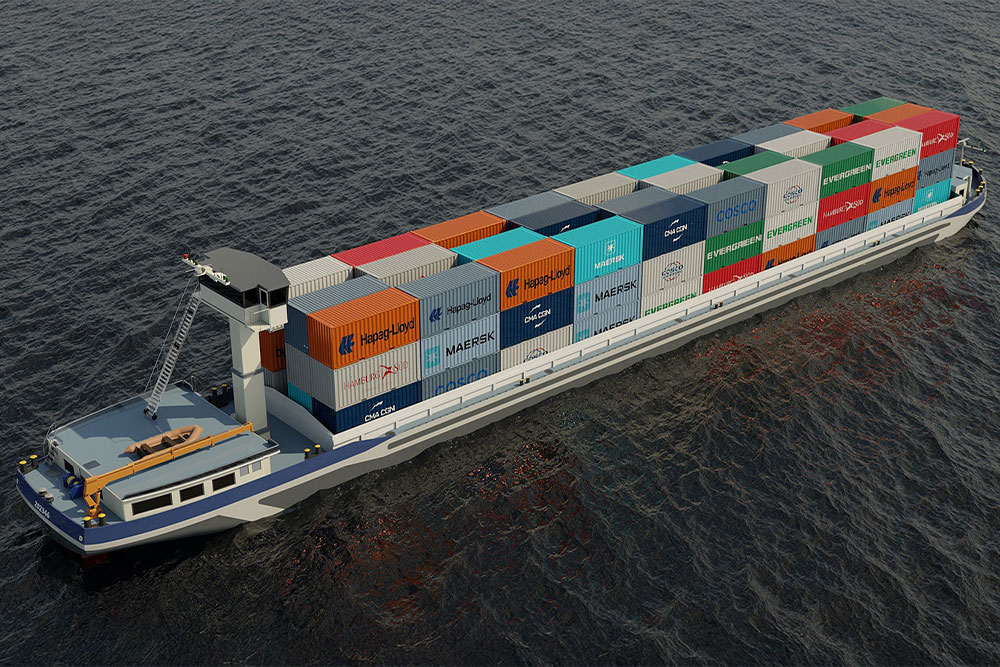

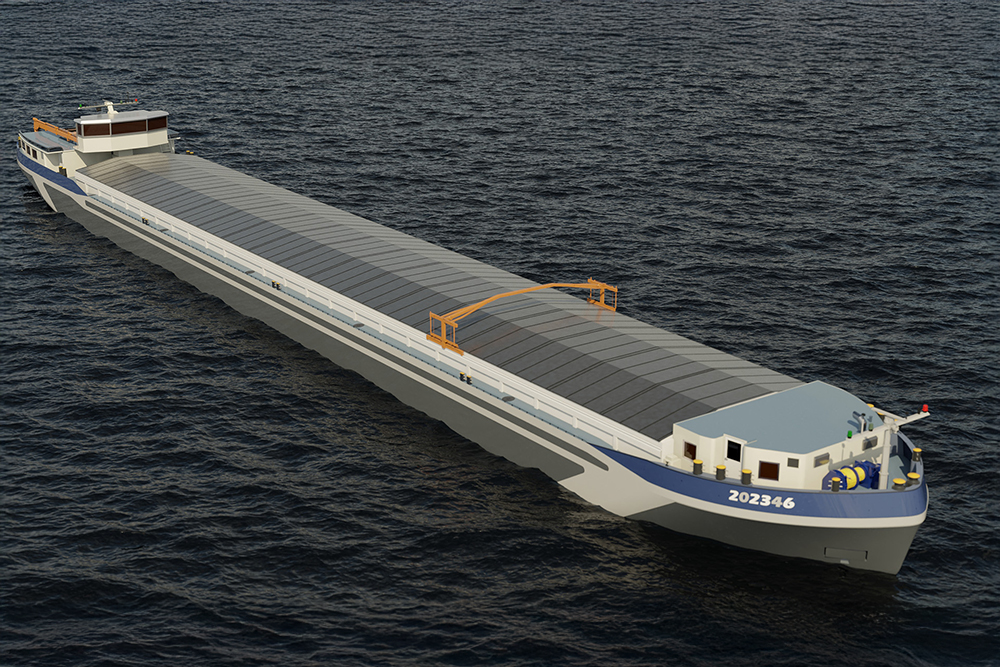

MAIN DATA
PROJECT No.:	BING Kaiser - 202346
OWNER:	Gebrüder Mnich GmbH
NAME:	202346
REGISTRATION:	HOCHDORF-ASSENHEIM
FLAG:	GERMANY
SHIP TYPE:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	86.000 m
Breadth Over All (Boa)	10.540 m
Depth (D)	3.200 m
Capacity
Container Capacity (4 Layers)	120.000 TEU
Cargo Capacity	1.660 to
Classification:	Lloyd’s Register
Service Notations:	DOUBLE HULL VESSEL / CONTAINERS VESSEL According to ADNR Marginal 110.291
Propulsion:	Double screw with flex tunnel
Engine:	Diesel-Electric, 2 x E-Motor 400 kW
Bow Thruster:	1x Verhaar Typ VBS1000Sr-N Thruster Diesel-Electric, 1 x E-Motor 400 kW
Class Drawings:	BING Kaiser

MAIN DATA
PROJECT No.:	Schiffswerft Ebert - 283
OWNER:	Rheintal Besitzgesellschaft GbR
NAME:	RHEINTAL
REGISTRATION:	WÖRTH am MAIN
FLAG:	GERMANY
Ship Type:	TANKSHIP TYP C
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	110.000 m
Breadth Over All (Boa)	11.450 m
Depth (H)	4.670 m
Draught (T)	3.200 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	3,211.200 m³
Cargo Center Tanks	9.000 Pcs
Classification
Classification:	BUREAU VERITAS
Main Class Symbols:	I 3/3 (E) NI 1
Service Notations:	TANKER, Typ C, Ladetank geschlossen, P=50 kPa Integraler Ladetank
Machinery and Equipment
Engine:	ABC 6MDZC-1000-166-A, Reintjes WGV482
Total Power:	1,324 kW / 1,800 HP
Diesel Generators:	1x 525 kVA, 1x 45 kVA, 1x 63 kVA, 1x 138 kVA
Bow Thruster:	Van Tiem, 375 kW
Shipyards
The Shipyard Which Built the Casco Ship:	Steelbuilding SRL / Constanta Shipyard, Romania
The Shipyard Which Completed the Ship:	Erlenbacher Schiffswerft Maschinen-und Stahlbau GmbH, Germany
Class Drawings:	Tiberius Kaiser, DT Service, Schiffswerft Ebert

SIMILAR SHIP / SISTER SHIP
PROJECT No.:	Schiffswerft Ebert - 282
OWNER:	Maintal Besitzgesellschaft GbR
NAME:	MAINTAL
REGISTRATION:	WÖRTH am MAIN
FLAG:	GERMANY
Class Drawings:	Tiberius Kaiser, PAT Proiect, Schiffswerft Ebert

SIMILAR SHIP / SISTER SHIP
PROJECT No.:	Schiffswerft Ebert - 274
OWNER:	Moinos Besitzgesellschaft GbR
NAME:	MOINOS
REGISTRATION:	WÖRTH am MAIN
FLAG:	GERMANY
Class Drawings:	Tiberius Kaiser, VIM Projekt, KWL, Telesoft, Schiffswerft Ebert

MAIN DATA
PROJECT No.:	Schiffswerft Ebert - 279
OWNER:	Detlef Maiwald
NAME:	CASCADE
REGISTRATION:	BOIZENBURG
FLAG:	GERMANY
Ship Type:	TANKSHIP TYP C
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	100.000 m
Breadth Over All (Boa)	11.450 m
Depth (H)	5.000 m
Capacity
Total Capacity of Cargo Tanks (V(100%))	2,979.000 m³
Cargo Center Tanks	8.000 Pcs
Classification
Classification:	BUREAU VERITAS
Main Class Symbols:	I 3/3 (E) NI 1
Service Notations:	TANKER, Typ C, Ladetank geschlossen, P=50 kPa Integraler Ladetank
Machinery and Equipment
Engine:	1x MTU 12V 4000M60, 1780 HP, Reintjes WAF 664
Total Power:	1,324 kW / 1,800 HP
Diesel Generators:	2x 100 kVA, 1x 45 kVA
Bow Thruster:	Verhaar, Omega type 31120-4K, 400 kW
Propeller Nozzles:	Promarin Propeller, Van de Giessen Straalbuizen Optima 1760 mm
Rudder Installation / Shaft System:	De Waal BV
Winches, Anchors, Chains:	Tripomet Galati SRL
Wheelhouse, Accommodations:	Wessels GmbH
Shipyards
The Shipyard Which Built the Casco Ship:	Shipyard Kiliya, Ukraine
The Shipyard Which Completed the Ship:	Kötter Schiffswerft GmbH, Haren Ems, Germany
Class Drawings:	Tiberius Kaiser, Navproiect, Schiffswerft Ebert

SIMILAR SHIP / SISTER SHIP
PROJECT No.:	Schiffswerft Ebert - 280
OWNER:	Bernd Günther
NAME:	ANNA
REGISTRATION:	ILBERSTEDT
FLAG:	GERMANY
Class Drawings:	Tiberius Kaiser, Navproiect, Schiffswerft Ebert

MAIN DATA
PROJECT No.:	Erlenbacher Schiffswerft - 1173
OWNER:	BEHALA, Berliner Hafen-und Lagerhausgesellschaft mbH

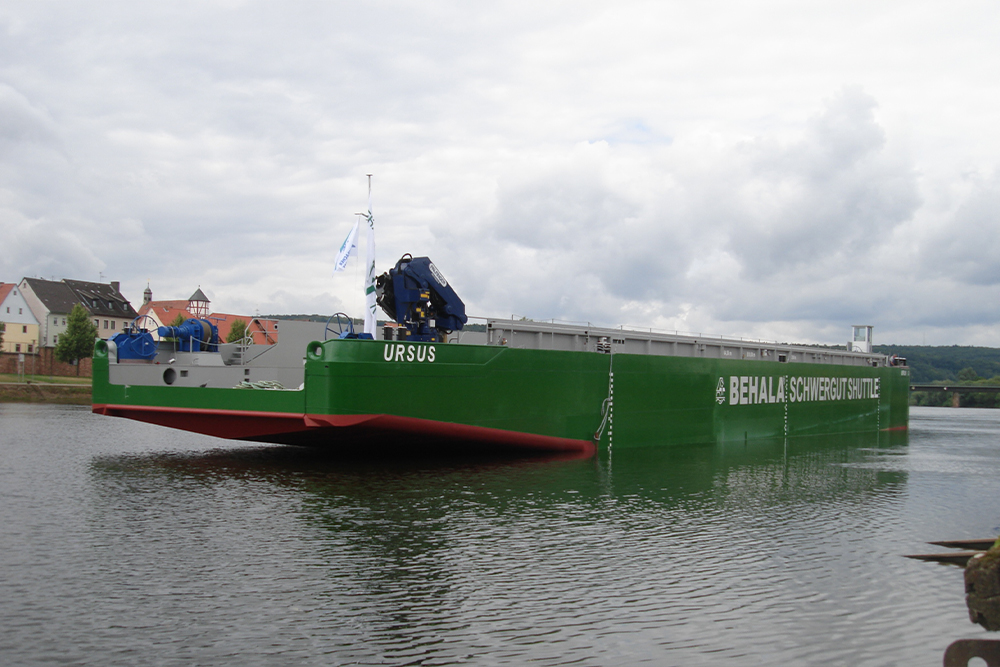

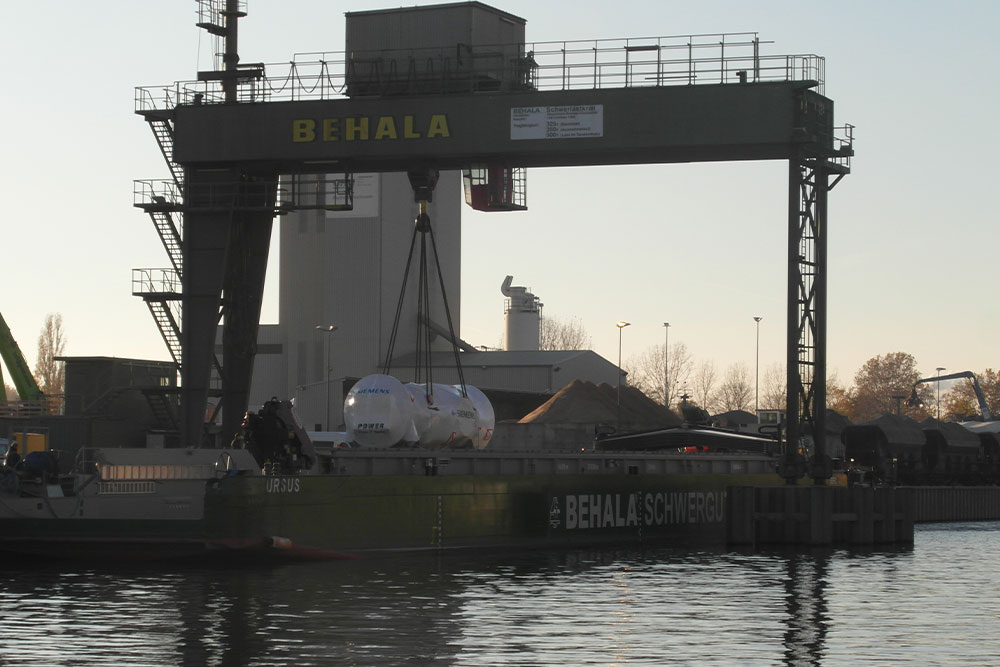

NAME:	URSUS
REGISTRATION:	BERLIN
FLAG:	GERMANY
Ship Type:	RO-RO BARGE
Description:	Barge for RoRo loading and transport of heavy piece goods
Main Activity:	Transport of gas turbines from the SIEMENS factory Berlin to Westhafen Berlin
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over Loading Ramp (Loa)	75.000 m
Length Over All (Loa)	64.500 m
Breadth Over All (Boa)	9.500 m
Depth (H)	4.700 m
Capacity
Draught 1 (T)	2.500 m — Capacity of one gas turbine: 800.000 t
Draught 2 (T)	3.500 m — Capacity of one gas turbine: 1,200.000 t
Classification
Classification:	ZSUK
Remarks:	Non classed vessel / Review of hull drawings by BV according to Bureau Veritas Rules for the Classification of Inland Navigation Vessels NR217.A1 DNI R003 E
Design Data
Design Bending Moments (BV) — Harbour conditions	Hogging: 13,411 kNm, Sagging: 62,608 kNm
Design Bending Moments (BV) — Navigation conditions	Hogging: 15,093 kNm, Sagging: 30,710 kNm
Range of Navigation	IN (0.6)
Machinery and Equipment
Diesel Generators:	Sauer & Söhne, IVECO — 1x 400 kVA, 1x 75 kVA
Bow Thruster:	Verhaar, Typ VBS900Sr — 265 kW, 1800 U/min
Deck Crane:	Palfinger Marine GmbH, PK90002M — Max. lifting 25 t, Lifting moment: 824.0 kNm, Slewing torque: 88.3 kNm
Ballast System:	2 x RUSCH Pumpen, Type R28-150s-300 Ballast system with stainless steel piping and valves, electrically controlled by remote from the wheelhouse for efficient ballast control
Cargo Hold:	Complete loading area with road surface and floor heating
Winches, Anchors, Chains:	SC Tripomet Ship Equipment SRL
Shipyards
The Shipyard Which Built the Casco Ship:	Foreship & Aftship: Erlenbacher Schiffswerft Maschinen-und Stahlbau GmbH, Germany Midship: Șantierul Naval Orșova SA, Romania
The Shipyard Which Completed the Ship:	Erlenbacher Schiffswerft Maschinen-und Stahlbau GmbH, Germany
Class Drawings:	Tiberius Kaiser, Navproiect, KWL, Erlenbacher Werft

MAIN DATA
PROJECT No.:	Schiffswerft Ebert - 263
OWNER:	F V Maes-Gasten
NAME:	ODESSA
REGISTRATION:	ANTWERPEN
FLAG:	BELGIUM
Ship Type:	PUSCHER
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	20.000 m
Breadth Over All (Boa)	10.000 m
Depth (H)	2.400 m
Machinery and Equipment
Engine:	2x Caterpillar 3508 (B) DI-TA electronic
Total Power:	2x 1,014 PS
Bow Thruster:	Verhaar, Omega type 31140-4K
Propeller Nozzles:	Promarin Propeller, Van de Giessen Straalbuizen, 2x Optima 1700 mm
Rudder Installation:	Van der Velden BV, Typ 4 DWKK 6080/56
Shipyards
The Shipyard Which Built the Casco Ship:	Daewoo Mangalia Heavy Industries, Mangalia, Romania
Ship Broker Which Delivered the Casco Ship:	Philipp Ebert & Söhne GmbH, Schiffswerft, Neckarsteinach, Germany
The Shipyard Which Completed the Ship:	PH Tinnemans & Zn BV, Maasbracht, Netherlands
Class Drawings:	Tiberius Kaiser, VIM Proiect, Schiffswerft Ebert

SIMILAR SHIP / SISTER SHIP
PROJECT No.:	Schiffswerft Ebert - 265
OWNER:	Rederij De Roeck, Danny Galicia
NAME:	KARA
REGISTRATION:	SCHOTEN
FLAG:	BELGIUM
Class Drawings:	Tiberius Kaiser, VIM Proiect, Schiffswerft Ebert

MAIN DATA – PUSH COMBINATION
MOTORSHIP
PROJECT No.:	Schiffswerft Ebert - 284
OWNER:	Brunno Somers (B)
NAME:	ACALI
REGISTRATION:	ANTWERPEN
FLAG:	BELGIUM
Ship Type:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	109.000 m
Breadth Over All (Boa)	11.500 m
Depth (D)	3.900 m
Capacity
Container Capacity (4 layers)	204.000 TEU
Classification
Classification:	GERMANISCHER LLOYD / ADNR 1995 / NSI
Main Class Symbols:	100 A 5 I
Service Notations:	DOUBLE HULL VESSEL / CONTAINERS VESSEL ACCORDING TO ADNR MARGINAL 110.291
Machinery:	MC
Machinery & Equipment
Engine:	2 x ABC 6MDZC, ZF W1200C
Total Power:	2 x 1500 HP
Bow Thruster:	4 Kanal Veth Motoren BV
Propeller Nozzles:	2 x HR Lips 1800 mm
Winches, Anchors, Chains:	SC Tripomet Ship Equipment SRL
Shipyards
The Shipyard Which Built the Casco Ship:	Shipyard Kiliya, Ukraine
Ship Broker Which Delivered the Casco Ship:	Philipp Ebert & Söhne GmbH, Schiffswerft, Neckarsteinach, Germany
The Shipyard Which Completed the Ship:	Tinnemans Scheepsbouw B.V, Vissers & van Dijk BV, Maasbracht, Netherlands
Class Drawings:	Tiberius Kaiser, Tech Design, Schiffswerft Ebert

BARGE
PROJECT No.:	Schiffswerft Ebert - 251
OWNER:	Gasten (B)
NAME:	ORTEGA
NEW NAME:	ACALI 3
REGISTRATION:	ANTWERPEN
FLAG:	BELGIUM
Dimensions
Length Over All (Loa)	87.000 m
Breadth Over All (Boa)	11.500 m
Depth (D)	3.700 m
Capacity
Container Capacity (4 layers)	192.000 TEU
Class Drawings:	Tiberius Kaiser, Navproiect, Schiffswerft Ebert

MAIN DATA
PROJECT No.:	Schiffswerft Ebert - 262
OWNER:	Schiffsgemeinschaft Seibert (D)
NAME:	HIRSCHHORN
REGISTRATION:	NECKARGEMÜND
FLAG:	GERMANY
Ship Type:	CONTAINER SHIP / CARGO SHIP / DOUBLE SCREW
Navigation Area:	INLAND NAVIGATION
Dimensions
Length Over All (Loa)	135.000 m
Breadth Over All (Boa)	11.450 m
Depth (D)	3.900 m
Capacity
Container Capacity (4 Layers)	268.000 TEU
Classification
Classification:	GERMANISCHER LLOYD / ADNR / NSI
Main Class Symbols:	100 A5 I
Service Notations:	DOUBLE HULL VESSEL / CONTAINERS VESSEL ACCORDING TO ADNR MARGINAL 110.291
Machinery:	MC
Machinery and Equipment
Engine:	1x ABC 6DZC, LOHMANN GWC 42/45
Bow Thruster:	Verhaar 4K
Propeller Nozzles:	HR 1750 mm, Lips 1800 mm
Winches, Anchors, Chains:	SC Tripomet Ship Equipment SRL
Shipyards
The Shipyard Which Built the Casco Ship:	Shipyard Kiliya, Ukraine
Ship Broker Which Delivered the Casco Ship:	Philipp Ebert & Söhne GmbH, Schiffswerft, Neckarsteinach, Germany
The Shipyard Which Completed the Ship:	Erlenbacher Schiffswerft Maschinen-und Stahlbau GmbH, Germany
Class Drawings:	Tiberius Kaiser, Tech Design, Schiffswerft Ebert

SIMILAR SHIP / SISTER SHIP
PROJECT No.:	Schiffswerft Ebert - 257
OWNER:	Schiffsgemeinschaft Seibert (D)
NAME:	TRIFELS
REGISTRATION:	NECKARGEMÜND
FLAG:	GERMANY
Class Drawings:	Tiberius Kaiser, Tech Design, KWL, Schiffswerft Ebert

SIMILAR SHIP / SISTER SHIP
PROJECT No.:	Schiffswerft Ebert - 267
OWNER:	Ernst Ludwig Seibert GmbH (D)
NAME:	DILSBERG
REGISTRATION:	NECKARGEMÜND
FLAG:	GERMANY
Class Drawings:	Tiberius Kaiser, VIM Proiect, Schiffswerft Ebert

SIMILAR SHIP / SISTER SHIP
PROJECT No.:	Schiffswerft Ebert - 268
OWNER:	Ernst Ludwig Seibert GmbH (D)
NAME:	STOLZENECK
REGISTRATION:	NECKARGEMÜND
FLAG:	GERMANY
Class Drawings:	Tiberius Kaiser, VIM Proiect, Schiffswerft Ebert

SIMILAR SHIP / SISTER SHIP
PROJECT No.:	Schiffswerft Ebert - 271
OWNER:	Ernst Ludwig Seibert GmbH (D)
NAME:	AARBURG
REGISTRATION:	NECKARGEMÜND
FLAG:	GERMANY
Class Drawings:	Tiberius Kaiser, Telesoft, Schiffswerft Ebert

CMS/GMS 202346

TMS Holstein

TMS Odyssee

CMS Hanse

GMS 201581

TMS 201434

TMS Inventory

TMS Montana

CMS Freienstein

TMS Mozart

CMS Eurosport

TMS New York

SL URSUS

TMS FRANCONIA

CMS CHIMO

CMS KILIYA

TMS NAVIRA

BMS CALCIT 8

TMS RHEINTAL

TMS CASCADE

SB ODESSA

CMS ACALI

CMS HIRSCHHORN

Technisch toezicht
